Electrical Safety for Your Home & Industry with Premium RCBO Circuit Breakers

Electrical Safety for Your Home & Industry with Premium RCBO Circuit Breakers

Are you concerned about electrical shocks, short circuits, or equipment damage? Standard MCBs (Miniature Circuit Breakers) only protect against overloads and short circuits—they cannot protect humans from electric shocks or current leakage!

To keep your family safe and protect your valuable appliances, Control BD brings you high-performance RCBOs (Residual Current Circuit Breakers with Overcurrent Protection)! 🛡️

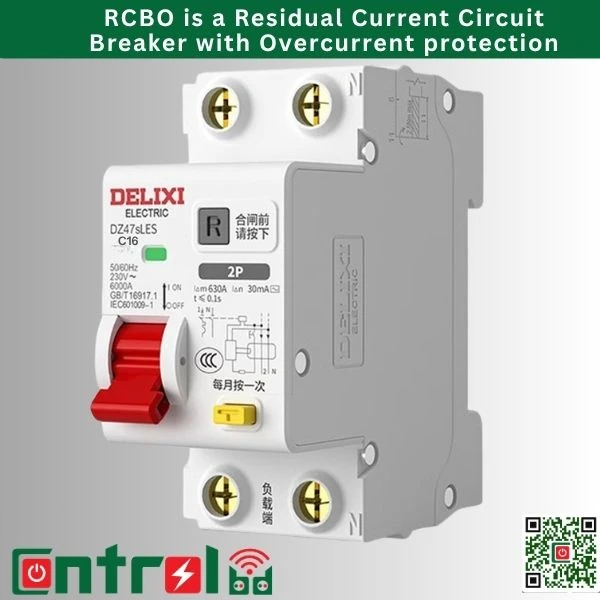

An RCBO combines the dual capabilities of an MCB (overload & short-circuit protection) and an RCCB/ELCB (earth leakage & electric shock protection) into a single compact unit.

Why Choose an RCBO? (Key Advantages)

• Life-Saving Shock Protection (30mA High Sensitivity): Triggers instantly (in under 0.1 seconds) if it detects a current leak as low as 30mA or if someone accidentally touches a live wire.

• 2-in-1 Complete Protection: Combines earth leakage, short circuit, and overload protection—eliminating the need to buy separate MCB and RCCB units.

• Fire Hazard Prevention: Immediately cuts off power during short circuits or wire overheating, preventing electrical fires.

• Space-Saving Design: Fits easily onto standard DIN rails in distribution boards (DB Boxes), saving panel space and keeping wiring clean.

Available Variants at Control BD:

Choose the right rating tailored to your specific load requirements:

1. 16A (30mA) RCBO: Ideal for room lighting, fans, TVs, desktop computers, and lighter home appliances.

2. 20A (30mA) RCBO: Perfect for 1.5 Ton ACs, water heaters/geysers, microwave ovens, and kitchen appliances.

3. 25A (30mA) RCBO: Great for 2 Ton ACs, water pumps, sub-panels, main lines, and small workshop machinery.

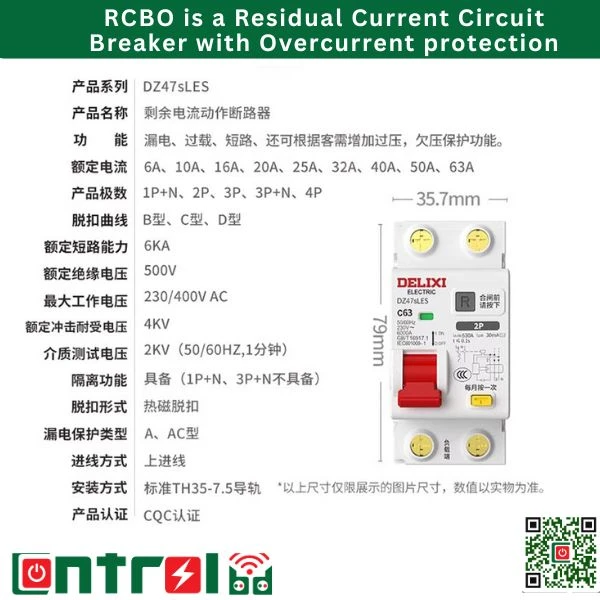

Technical Specifications

• Product Type: RCBO (Residual Current Circuit Breaker with Overcurrent Protection)

• Rated Current ($I_n$): 16A / 20A / 25A

• Residual Operating Current ($\Delta I_n$): 30mA (Human Safety Standard)

• Poles: 2P (Phase + Neutral Protection)

• Tripping Time: $< 0.1$ Seconds

• Rated Voltage: 230V AC (50Hz)

• Breaking Capacity: 6000A (6kA)

• Mounting Type: Standard 35mm DIN Rail Mount

Recommended Applications

• Main or sub-circuit protection in residential flats, homes, and villas

• Offices, showrooms, and commercial space distribution boards

• Dedicated lines for ACs, water pumps, heaters, and heavy appliances

• Industrial control panels and automation setups
